Streamlining Warehouse Design Visualization with an Innovative 3D Web Solution
In the dynamic world of supply chain and logistics, efficient warehouse design is paramount. In 2016, a globally recognized supply chain strategy and logistics consulting firm approached us with a challenge common to many technical environments: how to make complex engineering data accessible to the wider business team.
The firm's reliance on powerful, yet technically demanding, Computer-Aided Design (CAD) software created a divide. While excellent for specialist engineers, the CAD system's high licensing fees, complex installations, and steep learning curve excluded crucial non-technical stakeholders from easily viewing and collaborating on critical warehouse designs.
This required an innovative solution—a way to democratize high-fidelity 3D visualization, cutting costs and complexity, and seamlessly integrating design data into the daily workflow. Our mission was clear: to transform technical complexity into operational simplicity.

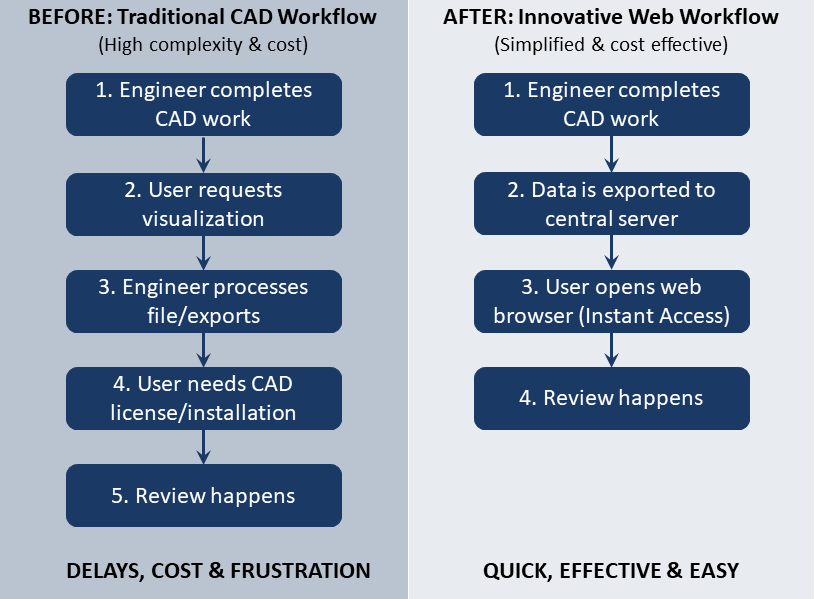

1. The Challenge: Complex CAD Visualization Limiting Collaboration
The client's process of designing and monitoring their warehouses required intricate detailing of racks, sizing, and container positioning, all managed within their advanced CAD system.
However, this reliance created several significant hurdles for the broader project team:
-
Limited Access: The system required expensive licenses and heavy client-side installations, making it inaccessible to the majority of the team.
-
Operational Burden: The need for client installations resulted in high maintenance, operational, and training costs.
-
Difficulty for Non-Technical Users: The technical complexity of the CAD system made it difficult for non-technical users to understand and interpret designs, limiting essential feedback and collaboration.
-
Workflow Integration: Seamlessly integrating the CAD output with the client's existing workflow and other enterprise systems was problematic.
2. The Solution: A Web-Based, 3D Interactive Visualizer
Our team designed and developed an innovative, browser-based 3D visualizer to address these challenges head-on.
Leveraging the power of the Three.js JavaScript library, we created a solution that transformed the raw, complex data exported from the CAD system into a rich, interactive, and universally accessible experience.
-
Data-Driven 3D Rendering: The visualizer ingests data points—including the height, width, length, latitude, longitude, and altitude of every container—to render a complete, three-dimensional view of the entire warehouse.
-
Intuitive Navigation: Users can travel, rotate 360 degrees, pan, and zoom to any location within the design, effectively providing the full visualization capability of the specialized CAD software.
-
Intelligent Color Coding: Based on critical metadata like content type and storage type (e.g., heavy, cold), the system applies dynamic color codes and gradients This immediate visual feedback helps non-technical users instantly grasp the logistical context of the design.
-
Universal Accessibility: As a simple web solution, it was seamlessly integrated with the customer’s existing systems and workflow, requiring nothing more than a standard web browser.
3. The Impact: Reduced Costs and Enhanced Collaboration
By developing this innovative web solution, we eliminated core barriers and delivered significant value to the client:
| Area | Before Our Solution | After Our Solution |
|---|---|---|
| Costs | High (Licenses, Installations, Training) | Dramatically Reduced (No Licenses, Minimal Training) |
| Accessibility | Limited to Licensed, Technical Users | Universal Access (Any Stakeholder via Web Browser) |
| Maintenance | High (Client Installations & Updates) | Minimal (Centralized Web Solution) |
| Collaboration | Disjointed and Slow | Simple and Real-Time (Integrated with Workflow) |
4. Conclusion: Simplicity Driving Strategic Value
This project successfully transformed a technically complex problem into an innovative, simple, and collaborative tool. It not only empowered non-technical users to engage directly with critical warehouse designs but also permanently eliminated the need for client installations and expensive CAD licenses for visualization purposes.
This engagement exemplifies our capability to leverage modern web technologies and innovative thinking to deliver simple solutions that solve complex business challenges, drive down operational costs, and foster greater organizational efficiency.
